What is Seismic Retrofitting and Do You Need It?

Understanding Seismic Retrofitting in South Africa’s Mining Zones

As someone who’s worked in construction projects across Gauteng and the North West, I’ve witnessed the hidden dangers beneath our feet. In areas close to mining activity, the ground can shift suddenly—damaging structures without warning. This is where seismic retrofitting comes in. Although we don’t experience major earthquakes in South Africa, the risk of ground movement due to mining makes structural reinforcement vital. Seismic retrofitting strengthens buildings to withstand these movements, protecting lives and preserving property.

In this post, I’ll share insights from personal experience, guide you through the basics of seismic retrofitting, and help you decide whether it’s necessary for your building—especially if you’re near mining areas.

Why Seismic Retrofitting Matters in South African Mining Regions

Seismic retrofitting isn’t just about preparing for earthquakes. In South Africa, it’s more about protecting buildings from the effects of underground mining. Here’s why it matters:

• Mining-Induced Vibrations: Explosions and excavation can destabilise ground structures.
• Subsidence Risks: Sudden collapse or gradual sinking of the ground can compromise structural integrity.
• Older Buildings: Structures not designed for current safety standards are especially vulnerable.

If you live or operate a facility in Rustenburg, Carletonville, or other mining towns, retrofitting could save you from costly repairs—or worse.

Signs You Might Need Seismic Retrofitting

During a renovation project in an older property near Springs, we noticed deep wall cracks and uneven floors—classic signs of ground movement. These red flags include:

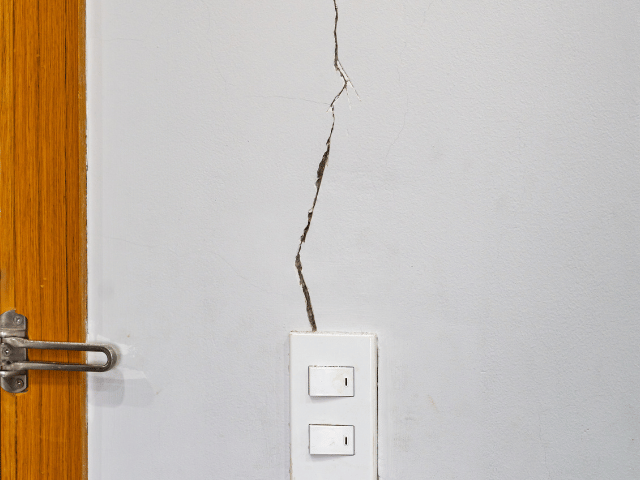

• Visible foundation cracks
• Warped window or door frames
• Sinking floors
• Repeated plaster cracks despite repairs

If these sound familiar, it’s time to consider an assessment.



Types of Seismic Retrofitting for Mining-Affected Buildings

Each building requires a unique solution, but here are some standard methods I’ve seen work effectively:

1. Foundation Bolting

This involves adding steel bolts to anchor your building more securely to its foundation. It’s especially useful in double-storey homes or older commercial properties.

2. Braced Frames

Steel bracing or reinforced concrete is added to improve lateral strength—essential in buildings prone to tilting or vibration from underground blasts.

3. Shear Walls

These are reinforced concrete walls installed to absorb sideways forces. Ideal for multi-storey buildings and commercial blocks.

4. Base Isolation Systems

Used mostly in high-end commercial structures, base isolators separate the building from its foundation, absorbing movement.

5. Grouting & Soil Stabilisation

In mining areas, strengthening the soil itself can make a huge difference. Pressure grouting fills voids underground, minimising subsidence risks.



Personal Experience: Retrofitting a School Near a Mine

I once worked on retrofitting a public school on the outskirts of Welkom. The ground movement had caused ceiling gaps and pipe misalignment. Through strategic shear wall installation and soil stabilisation, we brought the structure up to safety standards—without disrupting the academic schedule.

The gratitude of the faculty and improved safety for the learners made the effort more than worth it.

Do You Need Seismic Retrofitting?

Ask yourself these key questions:

• Is your building located near an active or closed mine?
• Are there structural issues that keep recurring?
• Was your property built before the 1980s?

If the answer to any of the above is ‘yes’, you need a structural inspection.

We recommend reaching out for a professional seismic risk assessment tailored to local ground conditions.

Benefits of Seismic Retrofitting

• Increased Property Value: Retrofitted buildings are more secure and often appraise higher.
• Safety Assurance: Minimises injury risks and damage costs.
• Insurance Savings: Some insurers offer better rates for structurally reinforced properties.
• Business Continuity: Commercial operations remain stable and uninterrupted.

FAQs on Seismic Retrofitting in Mining Zones

1. What exactly is seismic retrofitting?
It’s the process of strengthening buildings to withstand ground movement caused by either earthquakes or, in our case, mining activity.

2. How long does it take to retrofit a building?
Depending on size and condition, it can take from a few days to several weeks.

3. Is it worth retrofitting an old house?
Absolutely. Retrofitting not only improves safety but can also significantly increase the value of an older property.

4. Does insurance cover retrofitting?
Most insurance policies don’t cover the retrofitting itself, but they may reduce premiums once it’s done.

5. How do I know if my area is at risk?
Check local geological or municipal records, or get an inspection from a certified engineer familiar with South African mining impacts.

6. Can seismic retrofitting stop all damage?
No system is 100% foolproof, but it greatly reduces the risk of major structural damage or collapse.

Final Thoughts

Living in or near a mining zone comes with its unique risks. I’ve seen firsthand the difference seismic retrofitting can make—from preventing foundation collapse to extending the life of beloved structures.

If you’re unsure about your property’s condition, take action now. A simple inspection could lead to life-saving changes.
